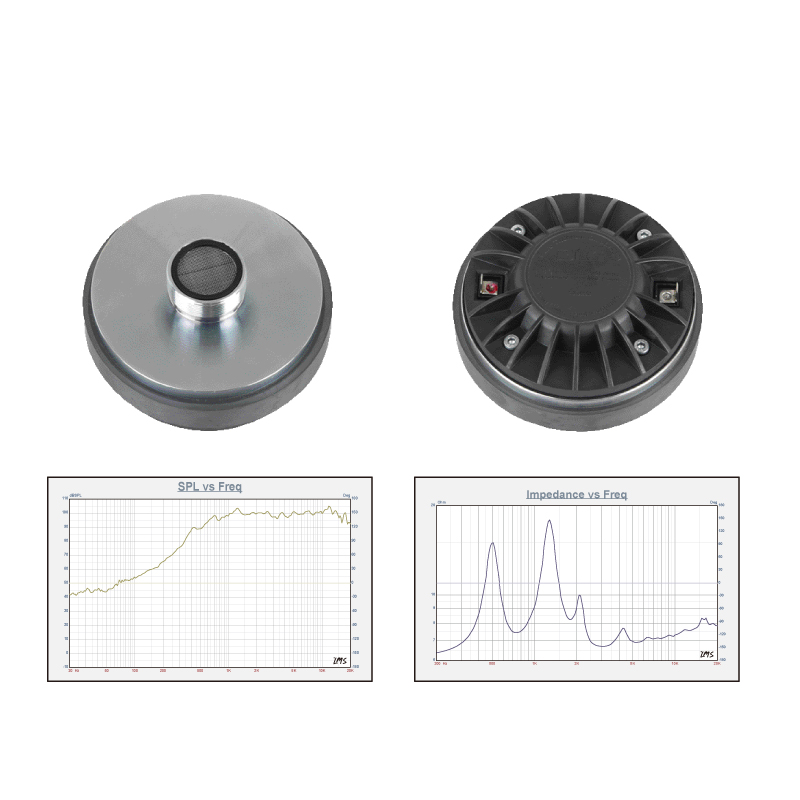

Nominal Basker Diameter 4.5" TWEETER
Nominal Impedance 8 ohm
DC Resistance(Re) 6.0 ohm
Nominal Power Handling(AES) 40W
Music Processing Power 80W
Usable Frequency Range 1.2K-20KHZ
Sensitivity 106dB/W/M
Magnet Material Ferrite
Magnet OD 110mm
Voice coil (CCAW) 1.75" 44.4mm
Diaphragm Material                 Titanium
Flux Density 1.5T
MOUNTING INFORMATION
Throat diameter 1"(25.4mm)
Overall Diameter          110mm
Depth 68mm
Net Weight 1.7kg
