System type: 2-way passive speaker

Power Rating RMS: 500W

Nominal Impedance: 8OHM

Sensitivity: 95dB ( 1W/1m)

Frequency response (-10dB): 50Hz - 20KHz

Dispersion: 100° H x 90° V

Max SPL: 122dB/131dB (Peak)

LF Driver: 15” Woofer, 3” VC

HF Driver: 1” exit , 1.75” VC

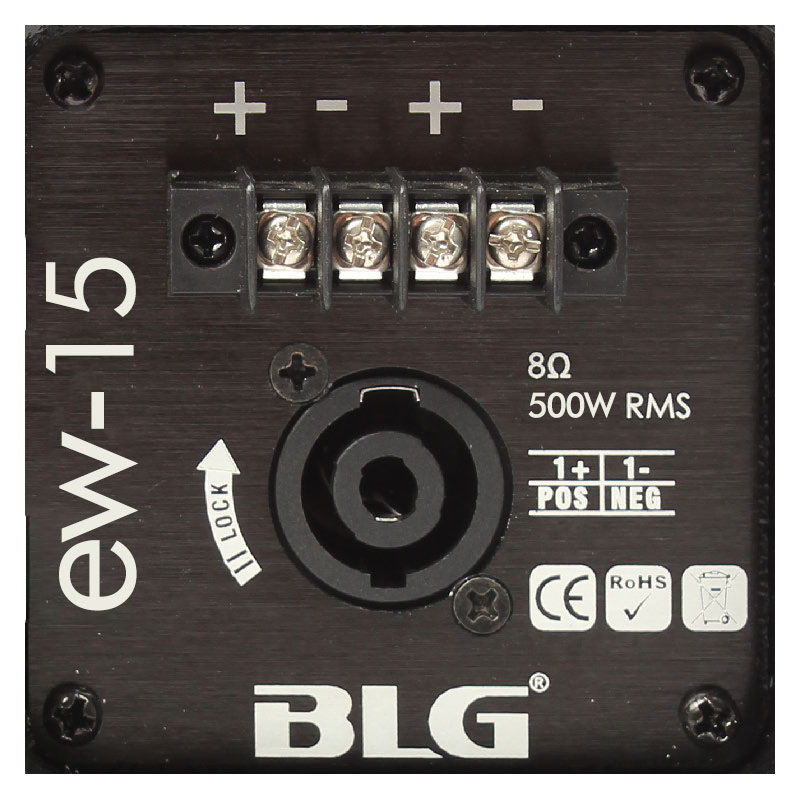

Input connectors: Speakon / screw terminal

Output connectors: XLR Balanced

Cooling system: Passive radiator

Enclosure: Multilayer plywood

Dimensions(WxDxH): 420x 420x 690mm

Net Weight(kg): 20

Qty per container 20’/40’/40’HC: 160/340/400
