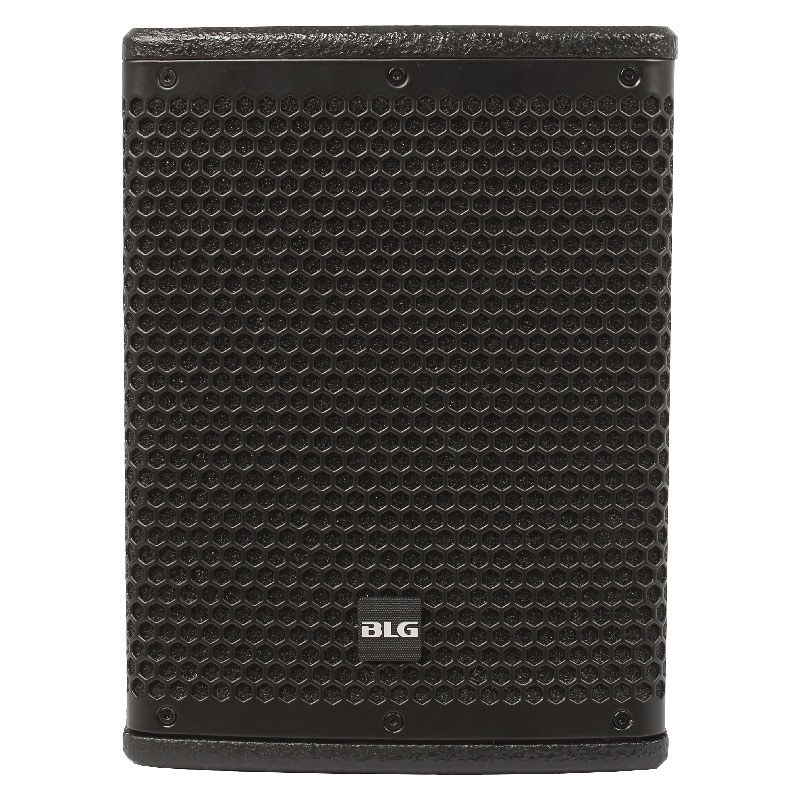

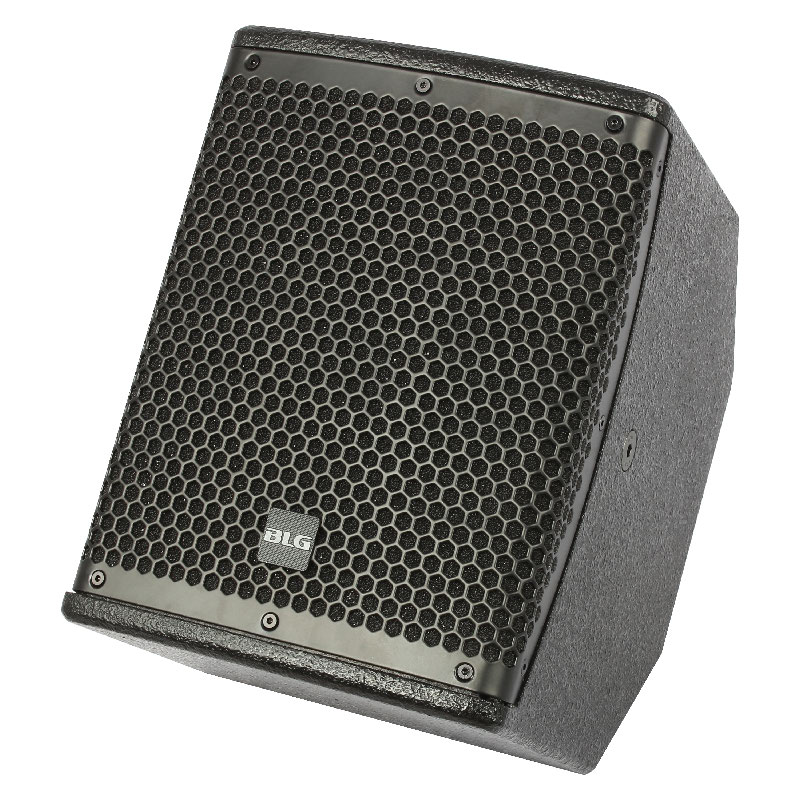

Cabinet: Plywood - Paint Box

Type: 2-way passive speaker

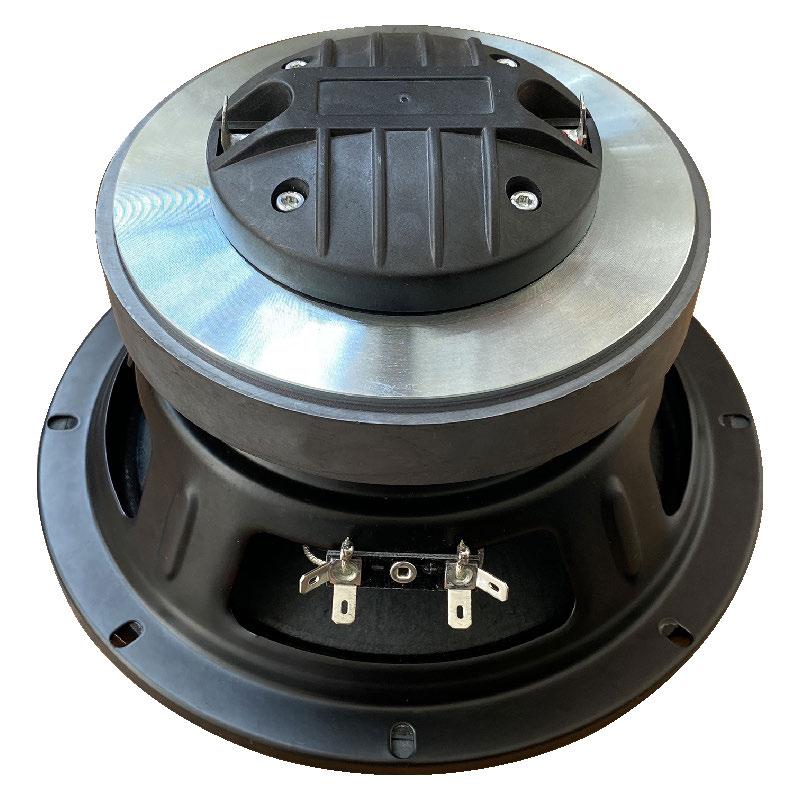

HF Driver: 1.35" voice coil

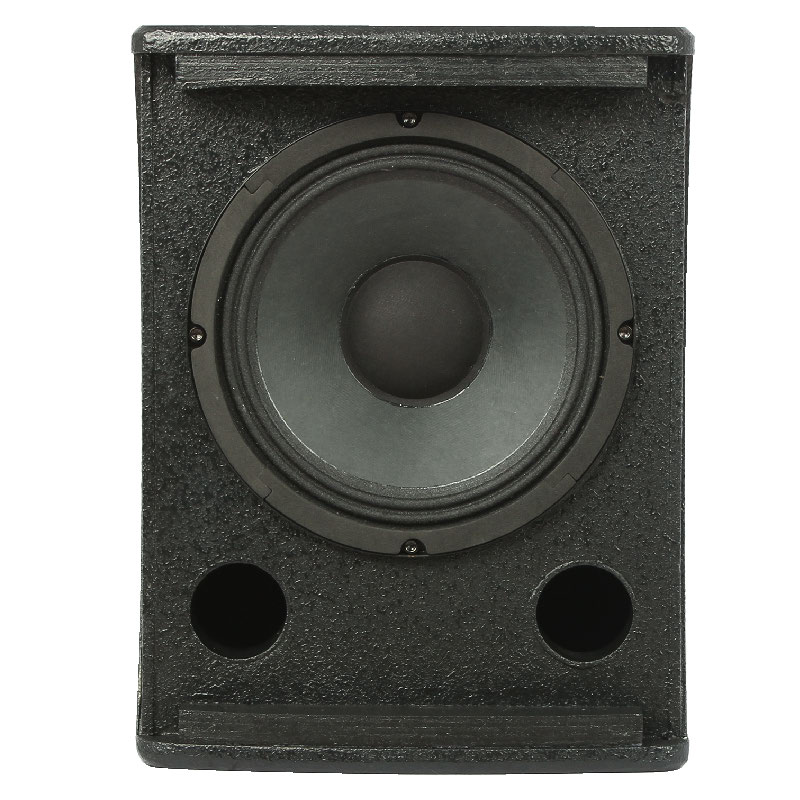

LF Driver: 8" woofer, 2" voice coil

Dispersion: 100° H x 100° V

Frequency Range: 70Hz-20KHz ( -10dB)

Input: Speakon, screw terminal

Sensitivity: 94dB ( 1W/1m)

Max SPL: 117dB (at 1m)

Power capacity: 200W

Nominal Impedance: 8 ohm

Dimensions(WxDxH): 260x 315x 345mm

Net Weight(kg): 8.5

Qty per container 20’/40’/40’HC: 580/1215/1420
