Type: 3-way active speaker

HF: 1.5" exit with 2" Voice coil

MF: 4x 8”Midrange with 2" voice coil

LF: 18" Subwoofer  with 4" voice coil

Output power: 1000W + 600W + 100W

Total Output: 1700W x 2 RMS

DSP: DSP processor 48KHz - 56 bits with 5 presets, RS485 Network

Operating Frequency Range: 45Hz - 20KHz (@-3dB)

Frequency Response: 40Hz - 20KHz (@-10dB)

Maximum Peak SPL: 129dB / 141dB (peak)

Horizontal Coverage: 100°

Vertical Coverage: 40°

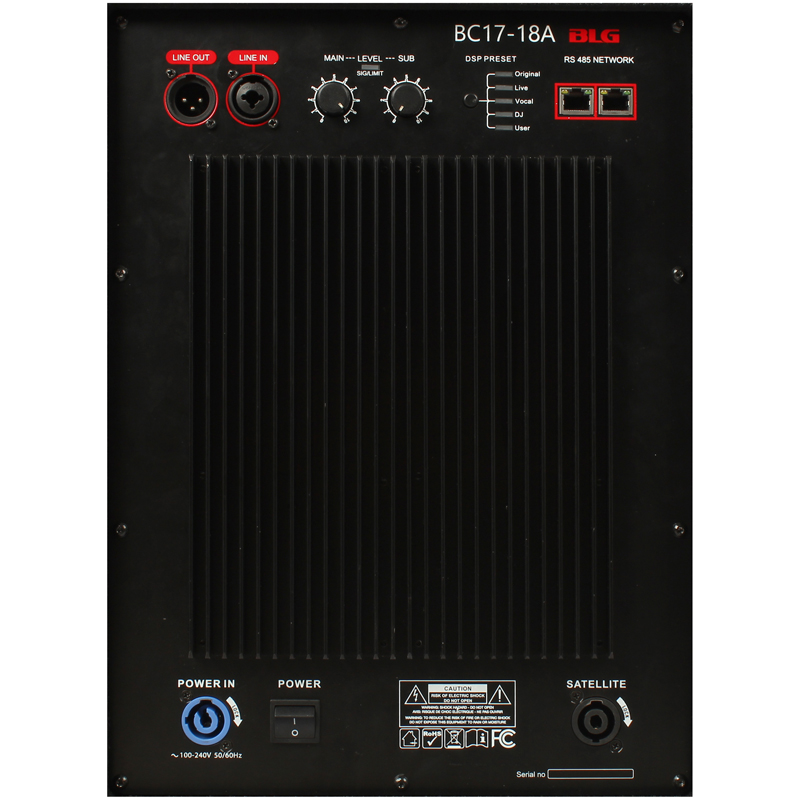

Audio Input: Combo XLR female input + Jack 6.35

Input Impedance: 10KΩ between Pin 2 and Pin 3

Nominal input sensitivity: 0dBV( 1.0V rms, 1.4V PEAK)

Enclosure: 12+15 mm plywood

Finish: Textured paint

Satellite Dimensions(WxDxH): 270x330x1160mm

Satellite Net Weight(Kg): 32

Subwoofer Dimensions(WxDxH): 540x665x765mm

Subwoofer Net Weight(kg): 46.5

Qty per container 20’/40’/40’HC: 55 / 110 / 130
