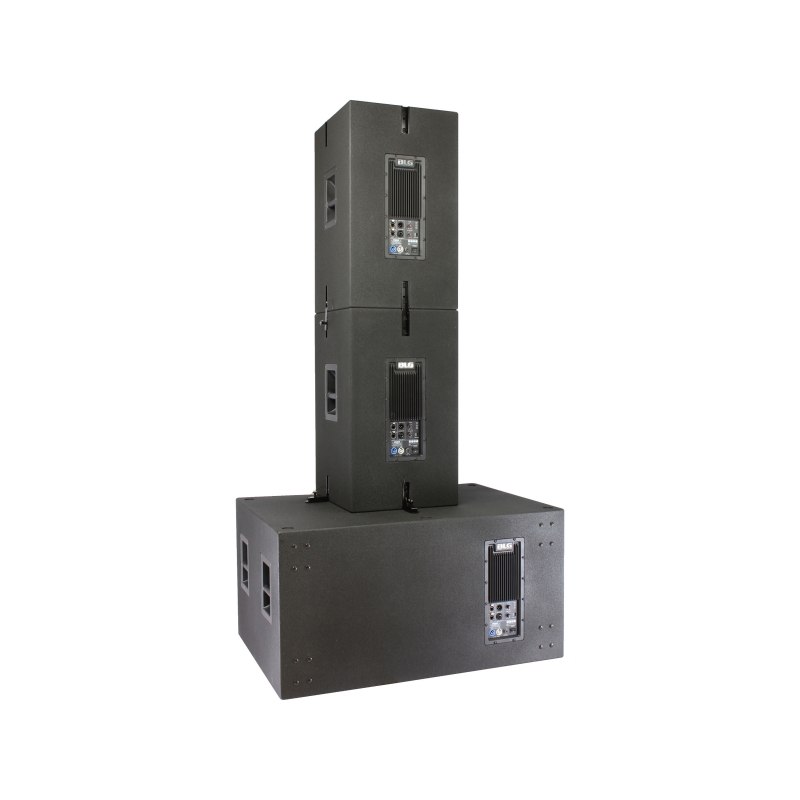

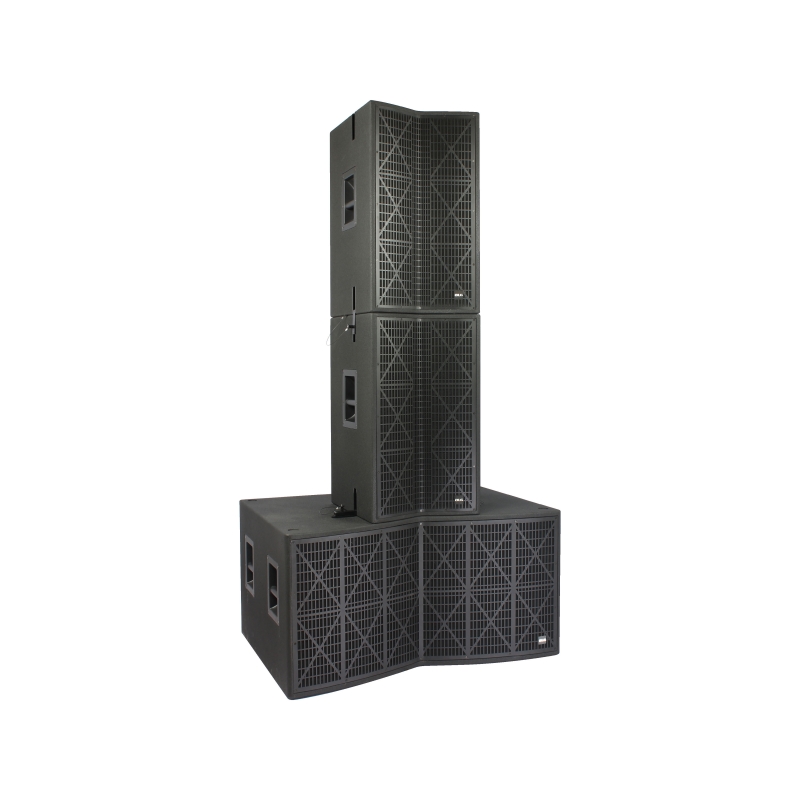

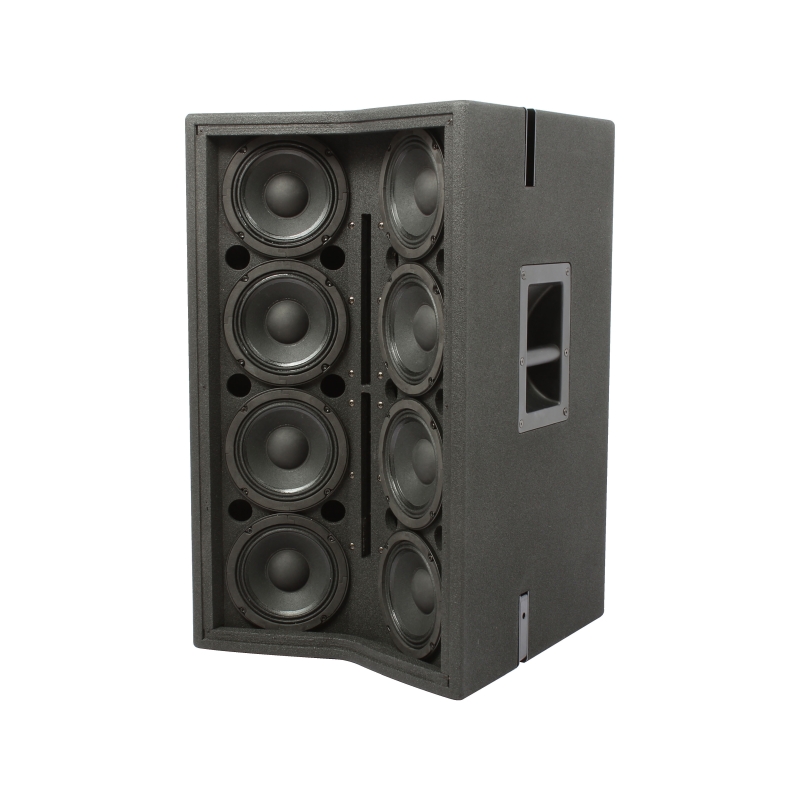

V-TOWER 865

Type: 2-way active speaker

HF Driver: 4 x 3.5’’ driver , 1’’ throat, 1.35’’ voice coil

LF Driver: 8 x 6.5‘’ woofer, 1.5‘’ voice coil

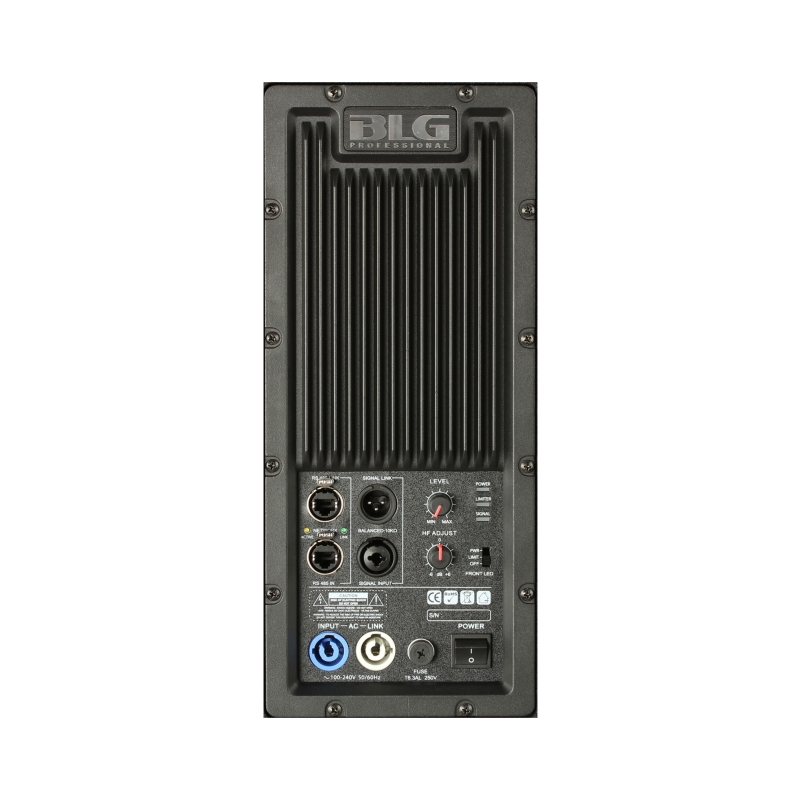

Amplifier: Bi-amp Class-D amplifier, RS485 Network

Frequency Range: 70Hz-20KHz (-10dB)

Mic/Line Input: XLR or 1/4’’ Jack

Line Output: XLR

Audio Processor: DSP processor - Software controlled

Max SPL: 122.5dB /137dB (Peak)

Power capacity: 600W+100W

Power Voltage: AC100V-240V

Dimensions(WxDxH): 430 x 460 x 750mm

Net Weight(kg): 47

Qty per container 20’/40’/40’HC: 135/280/325

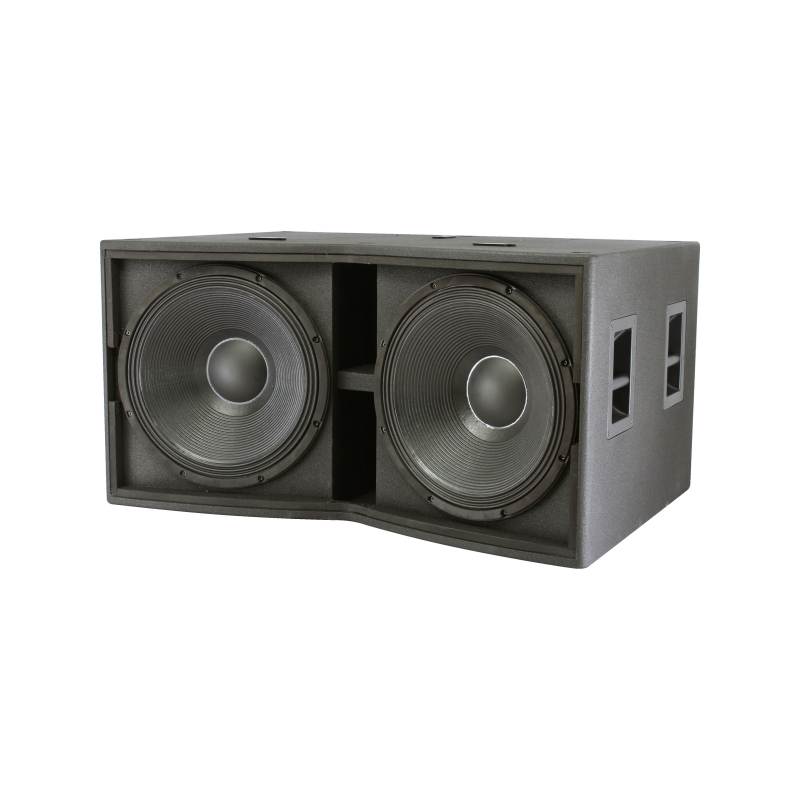

V-TOWER SUB218

Type: Bass Reflex dual 18’’ subwoofer active

LF Driver: 2 x 18‘’subwoofer, 4‘’ voice coil

Amplifier: Bi-amp Class-D amplifier, RS485 Network

Frequency Range: 30Hz-120Hz (-10dB)

Mic/Line Input: XLR or 1/4’’ Jack

Line Output: XLR

Audio Processor: DSP processor - Software controlled

Max SPL: 134dB /142dB (Peak)

Power capacity: 2 x 1000W

Power Voltage: AC100V-240V

Dimensions(WxDxH): 1080 x 735 x 565mm

Net Weight(kg): 71.5

Qty per container 20’/40’/40’HC: 50/105/125
