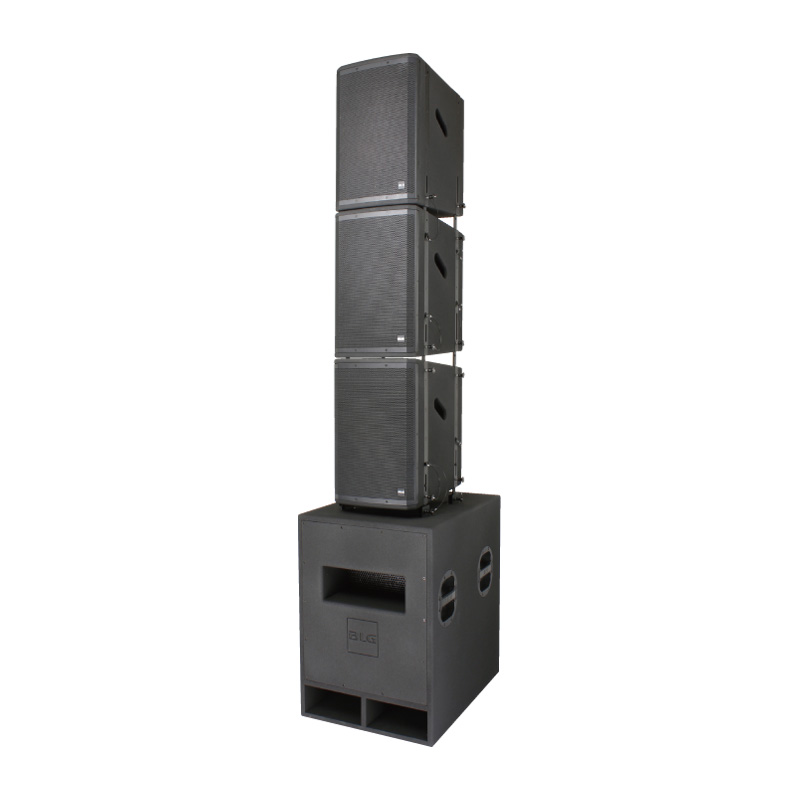

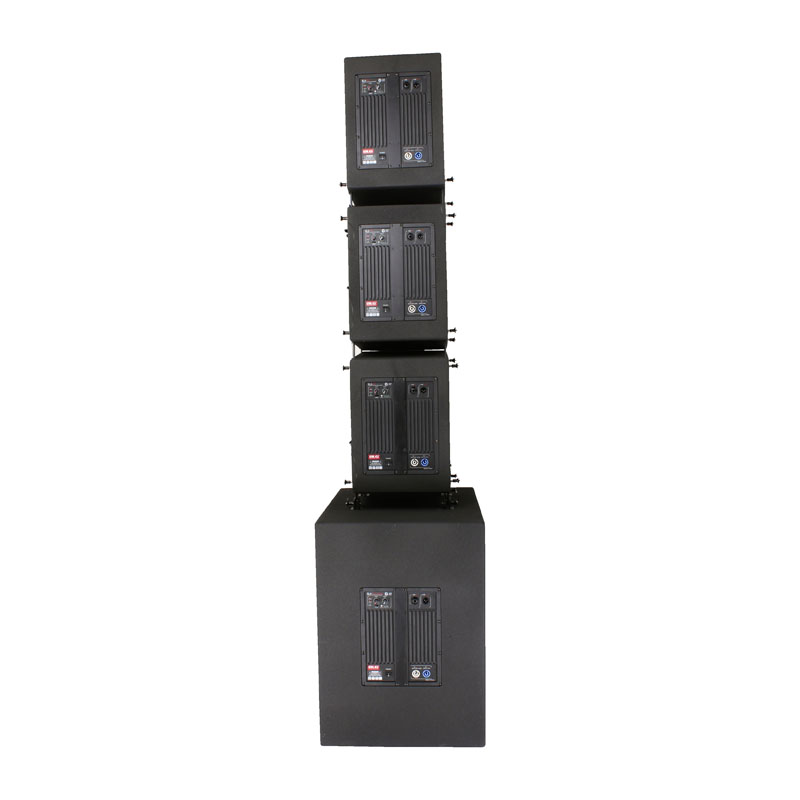

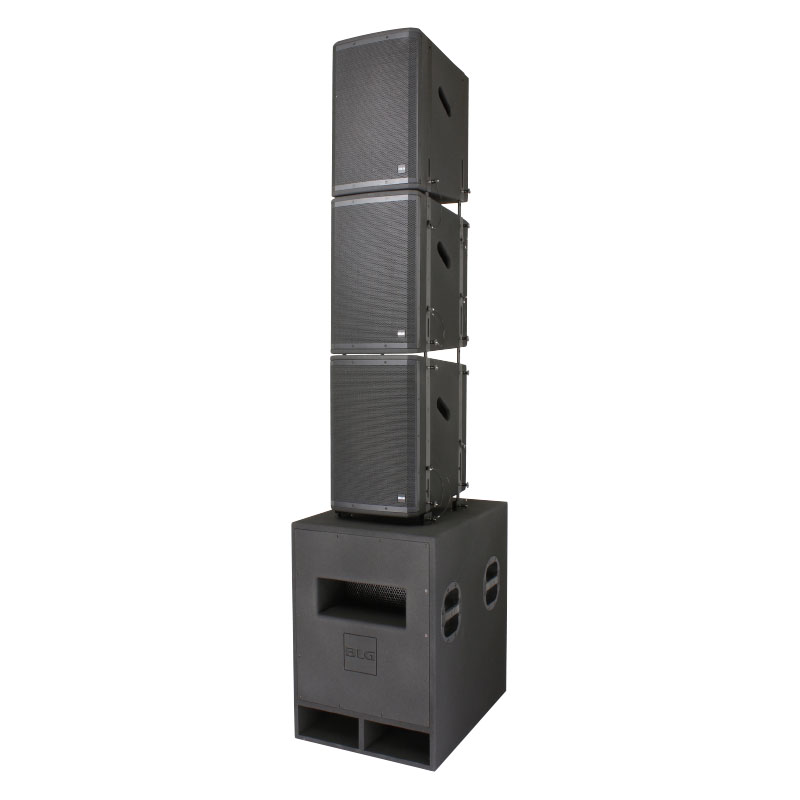

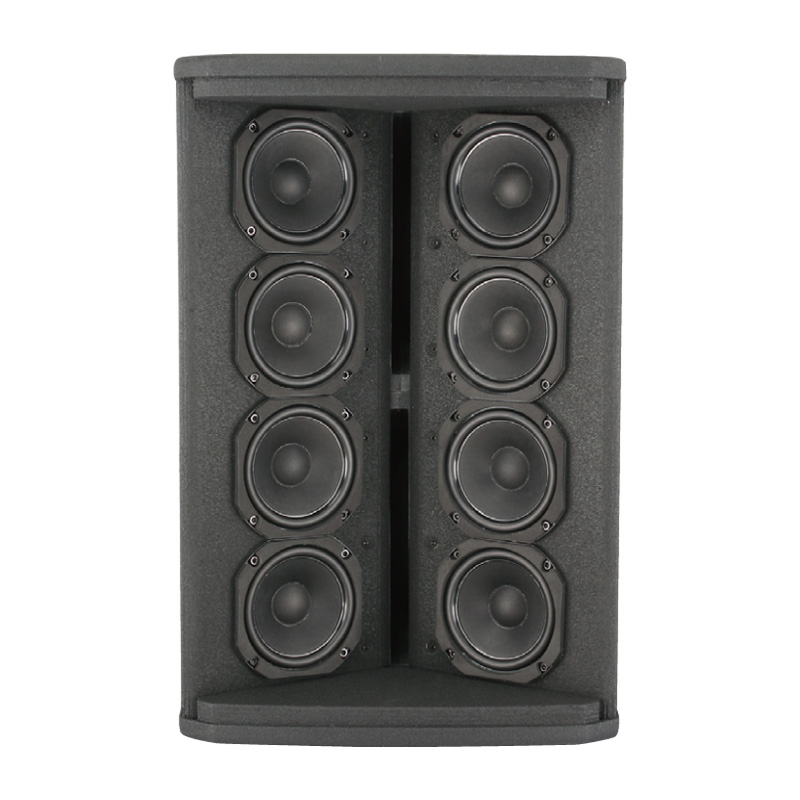

BLA-4A II
Type: Active V type structure

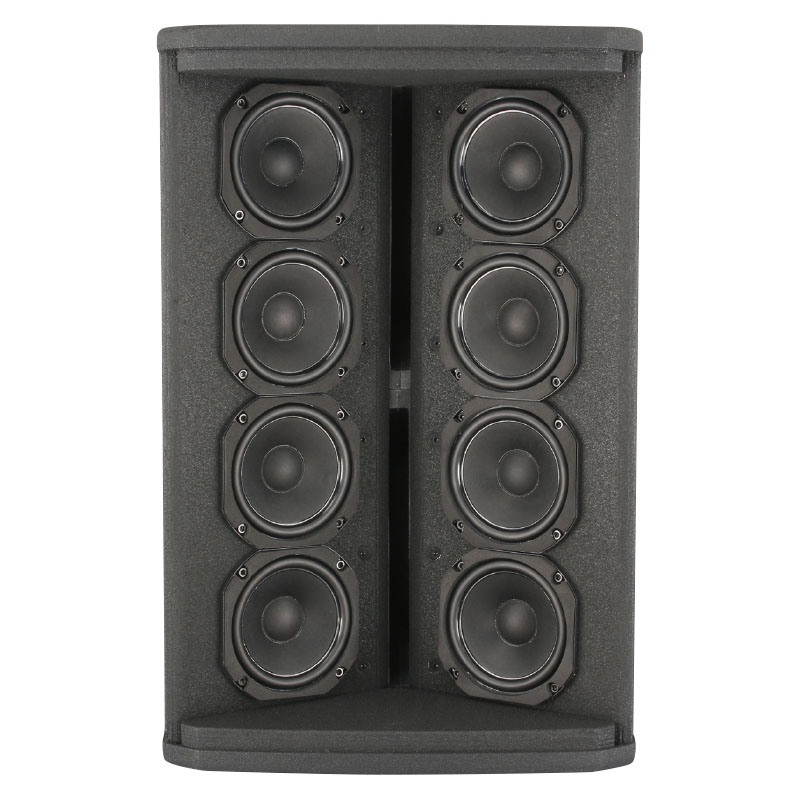

Drivers: 8x4”woofers+2x2” Titnium drivers
RMS Power:400W
MAX Power: 800W
Freq.Resp: 150Hz-20KHz
MAX SPL: 136dB (Peak)
Amplifier type: D-class
Delay:0-36ms

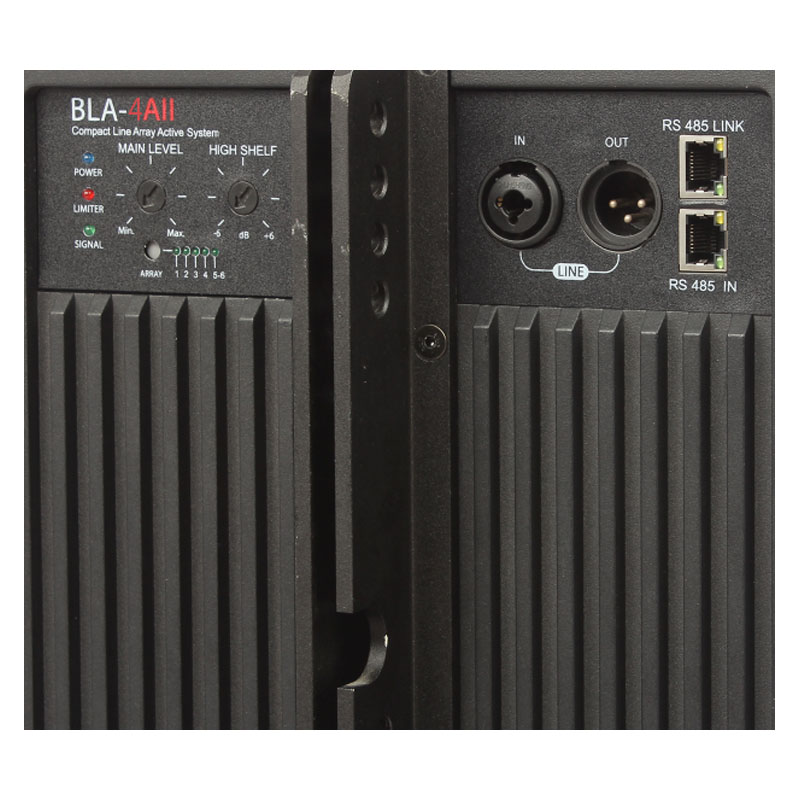

Signal processor: DSP-48KHz-24bits, RS485 Network

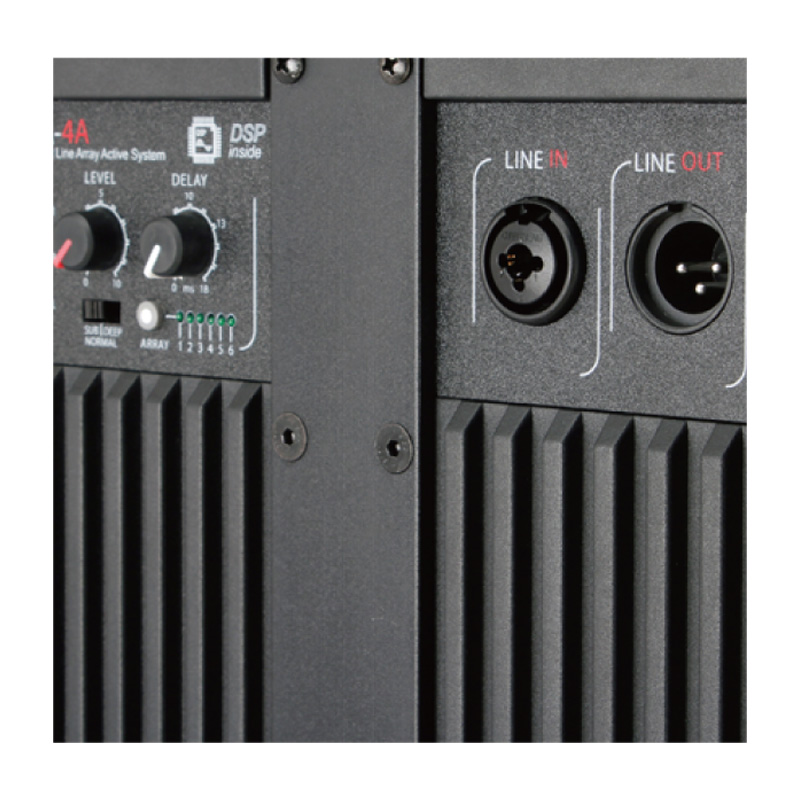

Input connectors: XLR Balanced

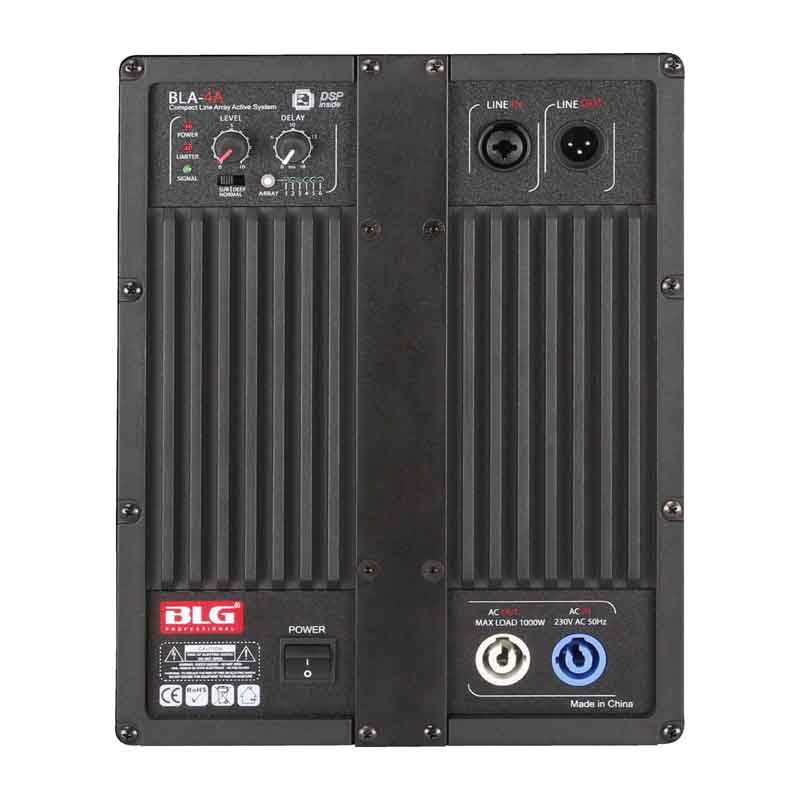

Controls: Input Level / HF level adjustment
Voltage: 100V-240V AC, 50/60Hz
Cabinet: 18mm plywood-Black Paint
Dimension(WxDxH):320x440x500mm
Net Weight: 26kg
Qty per container20’/40’40’HC: 200/410/480

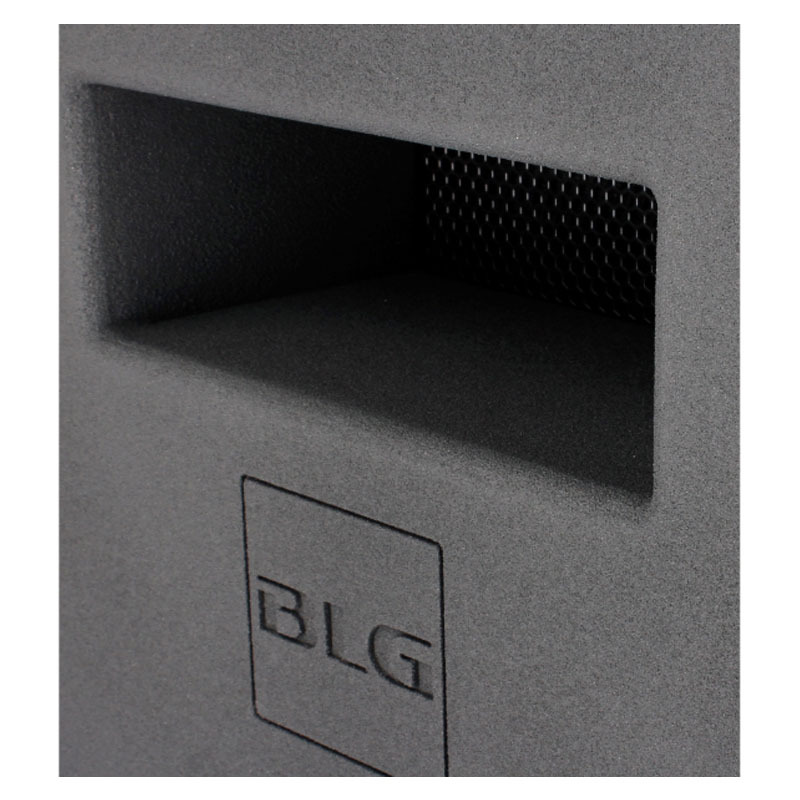

BLA-SUB18WA II
Type: Active Band-pass Subwoofer
Drivers:1x18”woofer/4”VC
RMS Power: 1000W
MAX Power: 2000W
Freq.Resp: 40Hz-120Hz
MAX SPL: 137dB (Peak)
Amplifier type: D-class
Delay:0-36m
Signal processor: DSP-48KHz-24bits, RS485 Network
Input connectors: XLR Balanced
Controls:Input Level / Phase/ X-over Freq
Voltage: 100V-240V AC, 50/60Hz
Cabinet: 18mm plywood-Black Paint
Dimension(WxDxH):520x685x720mm
Net Weight: 44kg
Qty per container20’/40’40’HC: 70/135/160
